Multiprotocol Shares
7 minute read.
A multiprotocol or mixed-mode NFS and SMB share supports both NFS and SMB protocols for sharing data. Multiprotocol shares allow clients to use either protocol to access the same data. This can be useful in environments with a mix of Windows systems and Unix-like systems, especially if some clients lack an SMB client.
Carefully consider your environment and access requirements before configuring a multiprotocol share. For many applications, a single protocol SMB share provides better user experience and ease of administration. Linux clients can access SMB shares usingmount.cifs
.
It is important to properly configure permissions and access controls to ensure security and data integrity when using mixed-mode sharing. To maximize security on the NFS side of the multiprotocol share, we recommend using NFSv4 and Active Directory(AD) for Kerberos authentication. It is also important that NFS clients preserve extended attributes when copying files, or SMB metadata could be discarded in the copy.
Before adding a multiprotocol SMB and NFS share to your system:
Configure and start the SMB and NFS services. Configure the NFS service to require Kerberos authentication.
Join the TrueNAS server to an existing Active Directory domain. Configure a container, Kerberos admin, and user accounts in AD.
Create the dataset and share with Dataset Preset set to Multiprotocol.
Before joining AD and creating a dataset for the share to use, start both the SMB and NFS services and configure the NFS service for Kerberos authentication. Configure the NFS service before joining AD for simpler Kerberos credential creation.
You can either use theShares screen Configure Service option on both the Windows (SMB) Share and on the UNIX (NFS) Shares widgets, or go to System > Services and select the Edit option on the SMB and NFS services.
Unless you need a specific setting or are configuring a unique network environment, we recommend using the default SMB service settings.
After configuring the share services, start the services.
From the Sharing screen, click on the Windows (SMB) Shares
to display the service options, which are Turn Off Service if the service is running or Turn On Service if the service is not running.After adding a share, use the toggle to enable or disable the service for that share.
To enable the service from the System > Services screen, click the toggle for the service and set Start Automatically if you want the service to activate when TrueNAS boots.
Open the NFS service screen, then select only NFSv4 on the Enabled Protocols dropdown list. For security hardening, we recommend disabling the NFSv3 protocol.
Select Require Kerberos for NFSv4 to enable using a Kerberos ticket.
If Active Directory is already joined to the TrueNAS server, click Save and then reopen the NFS service screen. Click Add SPN to open the Add Kerberos SPN Entry dialog.
Click Yes when prompted to add a Service Principal Name (SPN) entry. Enter the AD domain administrator user name and password in Name and Password.
TrueNAS SCALE automatically applies SPN credentials if the NFS service is enabled with Require Kerberos for NFSv4 selected before joining Active Directory.
Click Save again, then start the NFS service.
From the Sharing screen, click on the Unix Shares (NFS)
to display the service options, which are Turn Off Service if the service is running or Turn On Service if the service is not running.Each NFS share on the list also has a toggle to enable or disable the service for that share.
To enable the service from the System > Services screen, click the toggle for the service and set Start Automatically if you want the service to activate when TrueNAS boots.
The NFS service does not automatically start on boot if all NFS shares are encrypted and locked.
Mixed-mode SMB and NFS shares greatly simplify data access for client running a range of operating systems. They also require careful attention to security complexities not present in standard SMB shares. NFS shares do not respect permissions set in the SMB Share ACL. Protect the NFS export with proper authentication and authorization controls to prevent unauthorized access by NFS clients.
We recommend using Active Directory to enable Kerberos security for the NFS share. Configure a container (group or organizational unit), Kerberos admin, and user accounts in AD.
You can create the dataset and add a multiprotocol (SMB and NFS) share using the Add Dataset screen.
It is best practice to use a dataset instead of a full pool for SMB and/or NFS shares. Sharing an entire pool makes it more difficult to later restrict access if needed.
Select the dataset you want to be the parent of the multimode dataset, then click Add Dataset.
Enter a name for the dataset. The dataset name populates the SMB Name field and becomes the name of the SMB and NFS shares.
Select Multiprotocol from the Dataset Preset dropdown. The share configuration options display with Create NFS Share and Create SMB Share preselected.
(Optional) Click Advanced Options to customize other dataset settings such as quotas, compression level, encryption, and case sensitivity. See Creating Datasets for more information on adding and customizing datasets.
Click Save. TrueNAS creates the dataset and the SMB and NFS shares. Next edit both shares. After editing the shares, edit the dataset ACL.
After creating the multimode share on the Add Dataset screen, go to Shares and edit the SMB share.

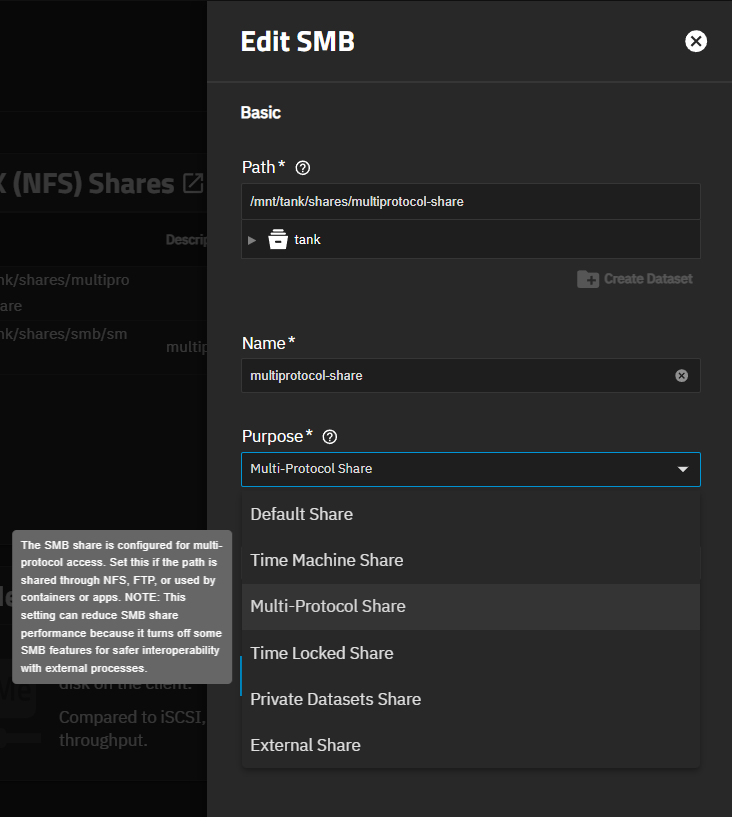

Select the share on the Windows Shares (SMB) widget and then click Edit. The Edit SMB screen opens showing the Basic Options settings.
Select Multi-protocol (NFSv4/SMB) shares from the Purpose dropdown list to apply pre-determined Advanced Options settings for the share.
(Optional) Enter a Description to help explain the share purpose.
Click Save.
Restart the service when prompted.
After creating the multimode share on the Add Dataset screen, go to Shares and edit the NFS share.
Select the new share listed on Unix (NFS) Shares widget and then click Edit. The Edit NFS screen opens showing the Basic Options settings.
Enable Kereberos security. Click Advanced Options. Select KRB5 from the Security dropdown to enable the Kerberos ticket that generated when you joined Active Directory.
If needed, select Read-Only to prohibit writing to the share.
Click Save.
Restart the service when prompted.
After joining AD, creating a multimode dataset and the SMB and NFS shares, adjust the dataset/file system ACL to match the container and users configured in AD.
You can modify dataset permissions from the Shares screen using the Edit ACL screen for each share (SMB and NFS). Using this method you select the share on the Windows (SMB) Share widget, then click the icon to edit the dataset properties for the SMB share, but you must repeat this for the NFS share.
Edit Filesystem ACL icon to open theOr you can go to Datasets, select the name of the dataset created for the multiprotocol share to use and scroll down to the Permissions widget for the dataset. Click Edit to open the Edit ACL screen.
Check the Access Control List to see if the AD group you created is on the list and has the correct permissions. If not, add this Access Control Entry (ACE) item on the Edit ACL screen for the multimode dataset (or each share).
Enter Group in the Who field or use the dropdown list to select Group.
Type or select the appropriate group in the Group field.
Verify Full Control displays in Permissions. If not, select it from the dropdown list.
Click Save Access Control List to add the ACE item or save changes.
See Permissions for more information on editing dataset permissions.
After setting the dataset permission, connect to the share.
After creating and configuring the shares, connect to the mulit-protocol share using either SMB or NFS protocols from a variety of client operating systems including Windows, Apple, FreeBSD, and Linux/Unix systems.
For more information on accessing shares, see Mounting the SMB Share and Connecting to the NFS Share.
